Single Wall Systems

Webb Core Cleanroom Wall Systems are engineered specifically for controlled environments and are designed to be fully compatible with each other.

Webb Core Cleanroom Wall System is a battened panel on a stud aluminum honeycomb curtain wall system. The open edge honeycomb panels are finished with battens at the joints. All trim pieces are clear anodized aluminum and the wall panels are pre-coated in a variety of finishes including conductive, static dissipative and chemically resistant.

The flexibility of the systems allows for simple installation particularly when bulk heading, windows, return air grills, and doors are integral. We offer various glazing options for filtering U.V. and/or conductive or static dissipative glass.

The system can accommodate needs up to 12′-0″ high and easy field penetrations and/or modifications for process piping, bulk heading and automated material handling systems (AMHS).

Single Sided ¼” Cleanroom Honeycomb Wall Panel System

Single Sided ¼” Cleanroom Honeycomb Wall Panel System

The single sided ¼” wall system is the most economical and widely used and features an optional pipe racking mounted to the backside for hanging utilities.

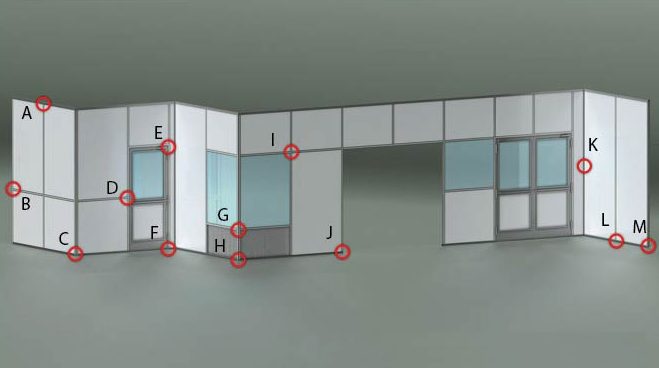

System Parts

  • A – Stud at Head Track
  • B – Horizontal to Wall Start
  • C – Outside Corner
  • D – Horizontal to Jamb
  • E – Door Head to Jamb
  • F – Jamb at Floor and Door Strike Hinge Plate
  • G – Window Assembly
  • H – Outside Corner Return Air
  • I – Horizontal Intersection
  • J – Wall Start
  • K – Inside Corner
  • L – Stud at Floor
  • M – Wall Start

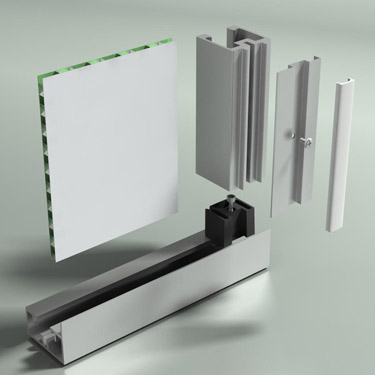

Webb Core Single Sided ¼ Inch Cleanroom Wall System Parts

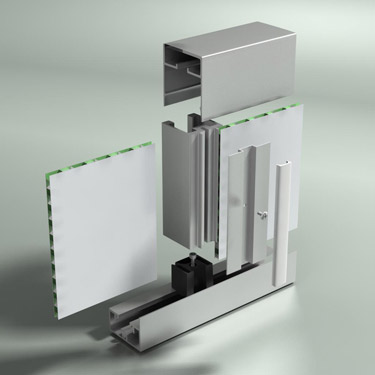

Stud at Head Track

A

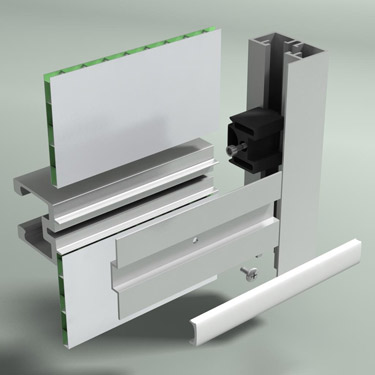

Horizontal to Wall Start

B

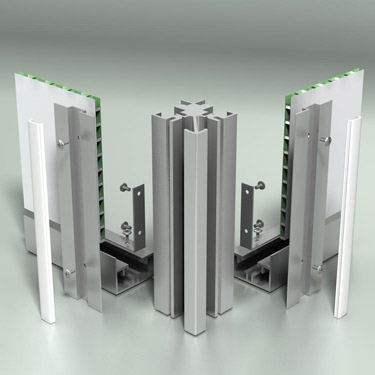

Outside Corner

C

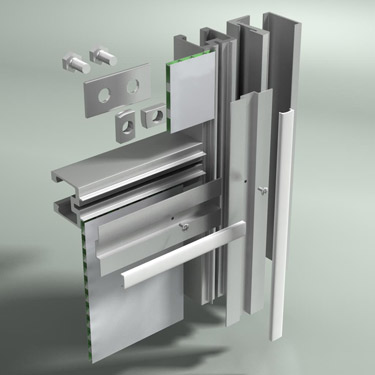

Horizontal to Jamb

D

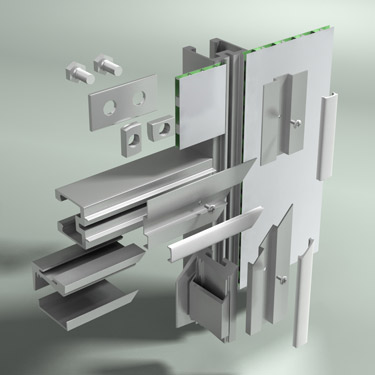

Door Head to Jamb

E

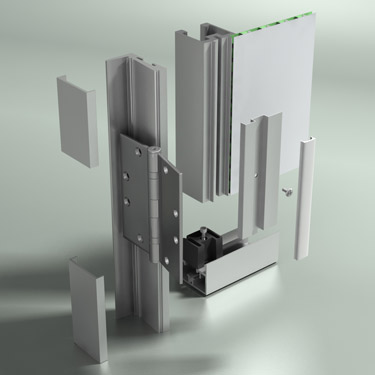

Jamb at Floor and Door Strike Hinge Plate

F

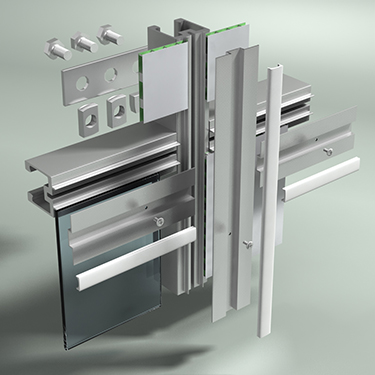

Window Assembly

G

Outside Corner Return Air

H

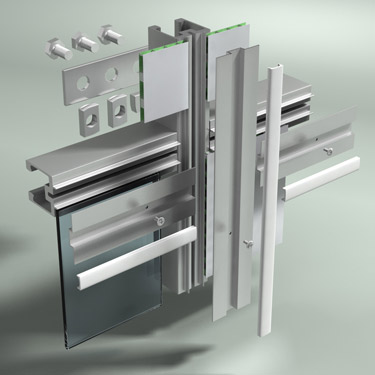

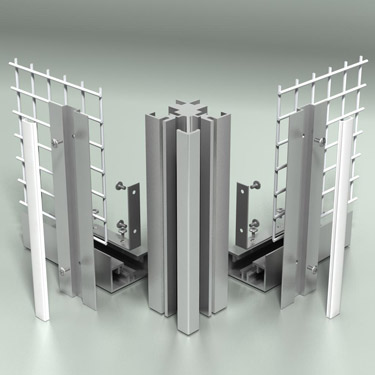

Horizontal Intersection

I

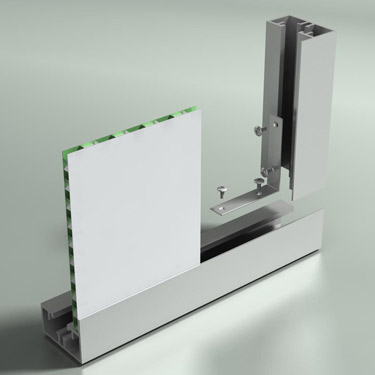

Wall Start

J

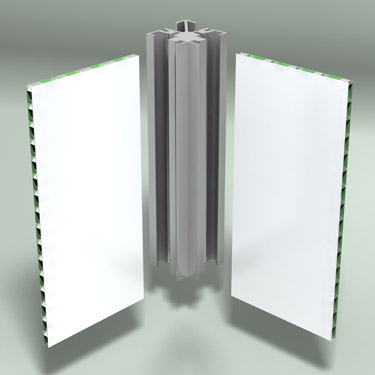

Inside Corner

K

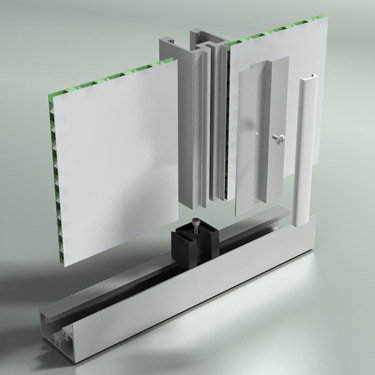

Stud at Floor

L

Wall Start

M
